    What is a Matrix Diagram in PMP

    If you’re thinking about Neo (played by the fantastic Keanu Reeves) and Morpheus (essayed by the intimidating Laurence Fishburne) after looking at the title of this blog, I won’t blame you. The 1999 science-fiction blockbuster dazzled both fans and critics alike. However, in this blog, I will be taking you through something called the Matrix Diagram and explaining what it is within the context of project management.

    As you may already know, the Project Management Professional (PMP) certification is the most recognized project management credential around the world. It is delivered and managed by the Project Management Institute (PMI) which is a not-for-profit organization and one of the foremost authorities on project management in the world. If you’re PMP-certified and a member of the PMI, it shows that you’re serious about a career in project management. It validates your project management experience, showing that it meets the rigorous and global standards set by the PMI. There are several project management courses you can enroll for if you want to get certified.

    Now, on to what is matrix diagram PMP.    

    What is a Matrix Diagram?

    matrix diagram PMP is a diagram that shows the relationship between different groups of information (or variables). However, it doesn’t stop there. It also shows the strength of these relationships, and the role that the variables play. According to the American Society for Quality, a matrix diagram is a tool to analyze and display the relationship between two, three, or four groups of information. Please note that it is also known as a quality matrix diagram or a matrix chart.

    A matrix diagram is a visual tool used to present the interrelationship between two or more variables. Each variable is indicated by a row while each column represents another variable. The cell indicates the strength of association between the variables. It is an efficient way to summarize data, do analyses and illustrate relationships among different categories or factors (variables). The relationship between variables emerges as patterns, which are organic. Please note that relationships within a matrix diagram cannot be forced.

    Get to know more about importance of project charter.

    Matrix Diagrams in the context of the PMP Exam

    Now that you’ve learnt what a matrix diagram PMP is, it’s important to understand what they are in the context of project management. While leading project teams, there are always numerous decisions to be made. You may need to make decisions regarding someone's role in the project, or the number of resources a particular task requires. For this, it’s important to stop thinking of the matrix only as a diagram. It can be a document or a chart as well. Whenever you have data concerning two or more variables, decisions need to be made. 

    You can analyze various types of information using a matrix diagram. These include:

    • Actions
    • Concepts
    • Equipment
    • Functions
    • Materials
    • People 

    In a matrix diagram, when a pair of elements intersect, you usually mark it using a number. Some people mark it using symbols - in this case, the different symbols typically have a value attached to them, to help you understand the strength of the relationship.

    Why use Matrix Diagrams?

    There’s no doubt that the matrix diagram PMP can be very useful in a project. For instance, it can offer you objective, balanced and accurate data - a crucial part of the decision-making process. It helps to measure the performance of a team or individual through time and enables comparisons. Matrix diagrams have many uses when you're setting up a new project, so you should use them often if you want to be more effective as a project manager.

    Matrix Diagrams are very important, even in the context of the PMP exam. Speaking of the PMP exam, please note that preparing for the PMP exam is a whole journey. Enroll in our project management professional course and learn how to demonstrate your knowledge of matrix diagrams.

    By the end of the program you should be able to:

    • Present information correctly and concisely. 
    • Perform calculations correctly and with sufficient precision. 
    • Write a report well. 
    • Prepare a matrix diagram. 
    • Ask and answer questions about the information presented in a matrix diagram.

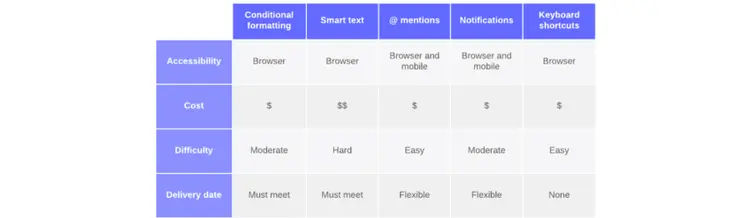

    Matrix diagrams are also great ways to describe complex relationships between variables. Let’s look at the snapshot below which is a classic example of when you’d use a matrix diagram.

    Let’s say that there’s a matrix diagram that shows a strong association between Task A, Task B and Task D. However, there isn’t much of an association between Task A and C or D. This information can be important for you and your team, as it helps to shape your project.

    There are a few things to remember when using matrix diagrams. For instance, if a matrix diagram shows that there is no relationship between two variables, this doesn’t mean they cannot be used together. It means they should be handled separately.

    Also, avoid mixing data if it pertains to different variables (for instance, if you have been asked to produce a matrix diagram showing the relationship between budget and schedule in a project).

    A matrix diagram is a great way to illustrate how two or more variables interact with each other. It provides a visual representation of how different factors affect your project and enables you to analyze them easily and with utmost precision.

    When to use Matrix Diagrams

    The following instances are examples where a matrix diagram PMP can really help you:  

    • Understanding the root cause of a problem
    • Understanding the optimum number of resources for a project (or sub-project)
    • Understanding the viability of a project based on skills and resources required
    • Identifying opportunities for improvement
    • Choosing between two or more solutions
    • Understanding whether project requirements have been met

    Ultimately, you can use a matrix diagram whenever you need to understand the relationship between two sets of data (or more).
