How to Install Docker on Ubuntu

By Kanav Preet

Updated on May 26, 2021 | 8 min read | 9.29K+ views

Share:

Docker is a platform that packages the application and all its dependencies in the container so that the application works seamlessly. The Container makes the application run its resource in an isolated process similar to the virtual machines, but it is more portable.

For a detailed introduction to the different components of a Docker container, you can check out Introduction to Docker, Docker Containers & Docker Hub. Also, don't forget to read about how to Install Jenkins on Ubuntu.

This tutorial covers the installation and use of Docker Community Edition (CE) on an Ubuntu 20.04 machine.

Pre-requisites

Audience

This tutorial is meant for those who are interested in learning Docker as a container service

System Requirements

  1. Ubuntu 20.04 64-bit operating system. (If Linux OS is not in system, we can run docker using Virtual Box, PFB the steps)
  2. A user account with sudo privileges
  3. An account on Docker Hub to pull or push an image from Hub.

Ubuntu Installation on Oracle Virtual Box

If you want to use Ubuntu 20.04 without making any change to the Windows Operating system, you can proceed with the Oracle Virtual box.

Virtual Box is free and open-source virtualization software from Oracle. It enables you to install other operating systems in virtual machines. It is recommended that the system should have at least 4GB of RAM to get decent performances from the virtual operating system.

Below are the steps for downloading Ubuntu 20.04 on Oracle Virtual box:

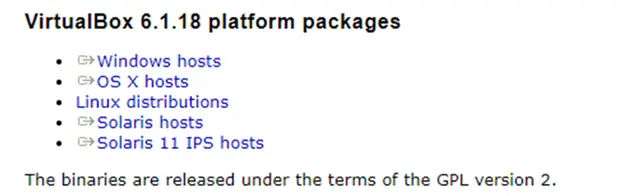

Navigate to the website of Oracle Virtual Box, download the .exe file and get the latest stable version.

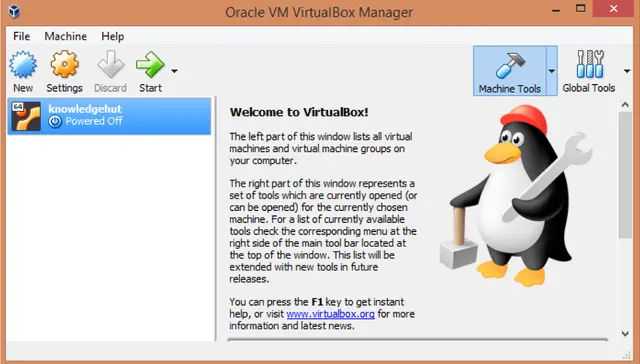

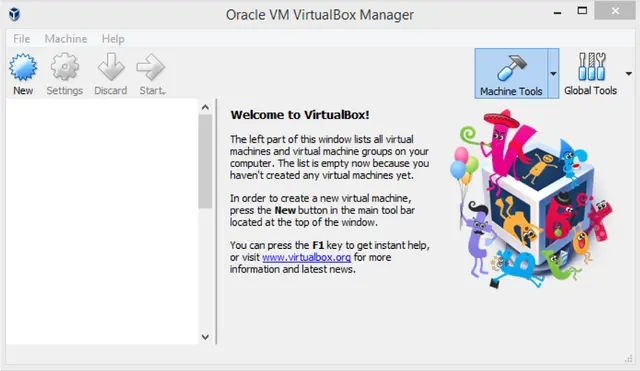

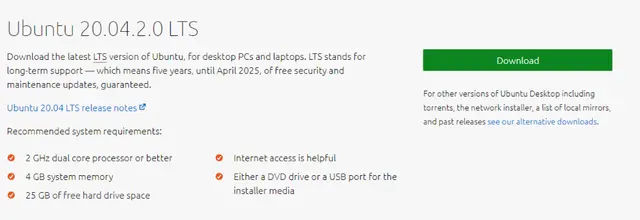

1. Once done with downloading the virtual box, we can navigate to and download the  Ubuntu disk image (.iso file) by clicking on the download option

2. Once the download has been completed for Ubuntu .iso file, open the virtual box and click on "New" present on top.

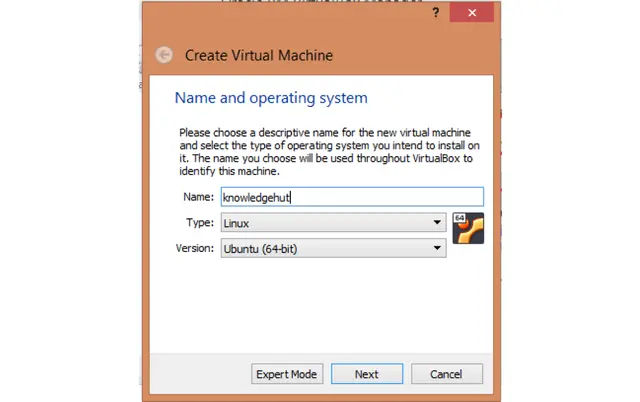

3. Enter the details of your virtual machine by giving any name, type as "Linux " and Version as Ubuntu (64 bit)

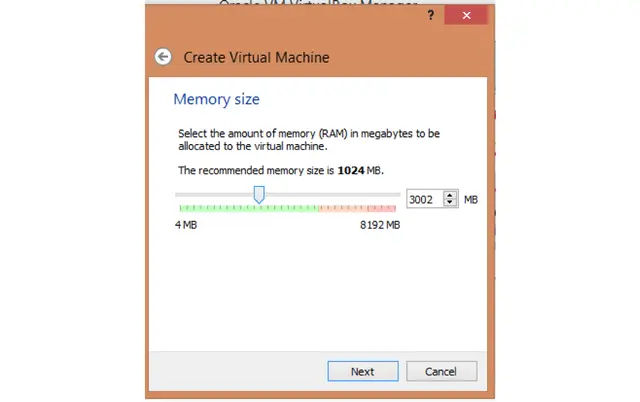

4. Choose the memory (RAM ) that needs to be allocated to the Virtual machine  and click on Next. (I have chosen 3000 MB)

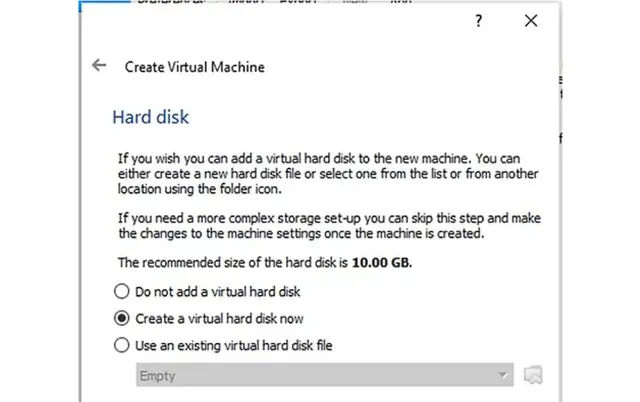

5. After the RAM allocation ,Click on  Create a virtual disk now. This serves as the hard disk of the virtual Linux system. It is where the virtual system will store its files

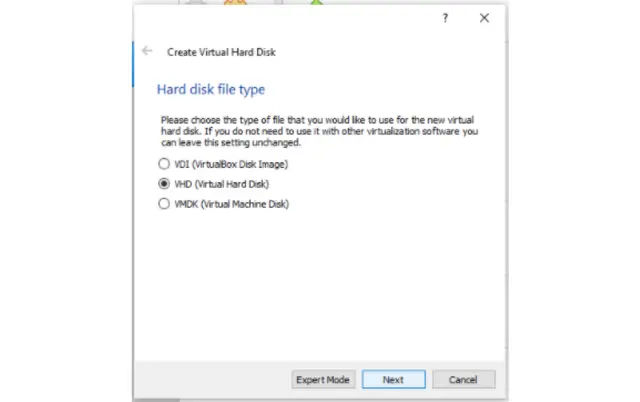

6. Now, we want to select the Virtual Hard Disk.

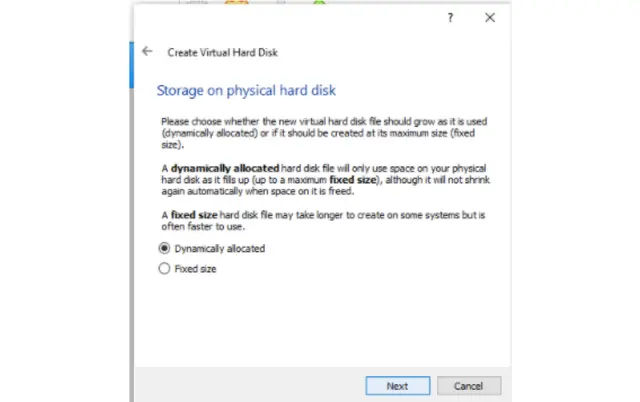

7. We can choose either the “Dynamically allocated” or the “Fixed size” option for creating the virtual hard disk.

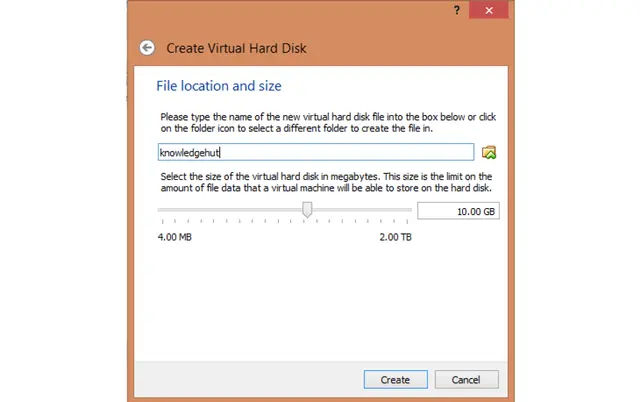

8. Finally, we have  to specify our Ubuntu OS's size. The recommended size is 10 GB, but it  can be increased if required.

8. Finally, we have  to specify our Ubuntu OS's size. The recommended size is 10 GB, but it  can be increased if required.

9. Ubuntu OS is ready to install in Virtual Box, but before starting the Virtual system, we need to a make few changes in settings. Click on storage under the setting.

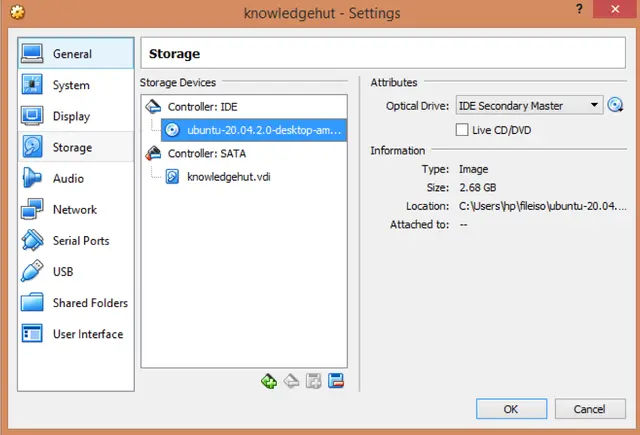

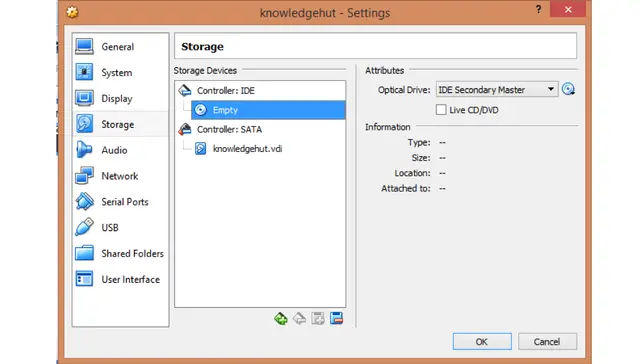

10. Click on Empty under Controller IDE. Navigate to Attributes and browse the Optical Drive option.

11. Choose the .iso file from the location where it is downloaded. Once selected, click on OK and start the Virtual box by clicking on start present on the Top menu.

12. Click ok and start the machine.

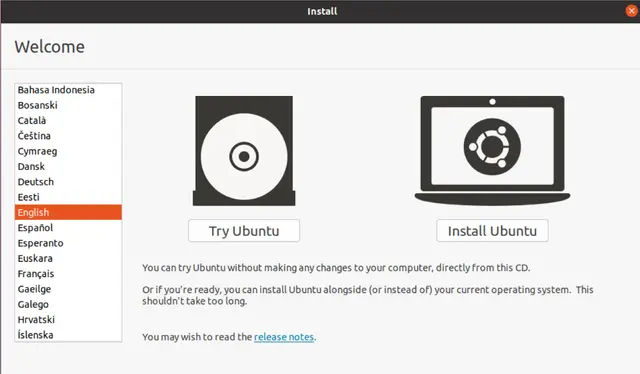

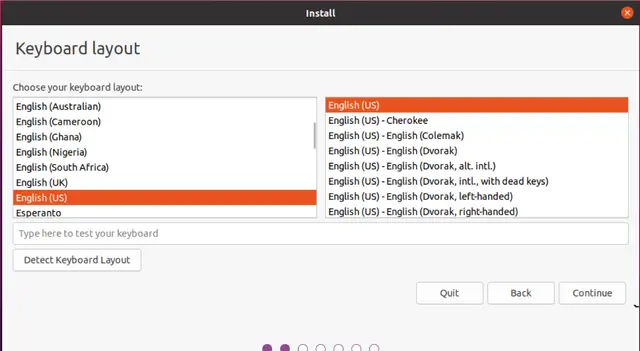

13. Proceed with "Install Ubuntu"

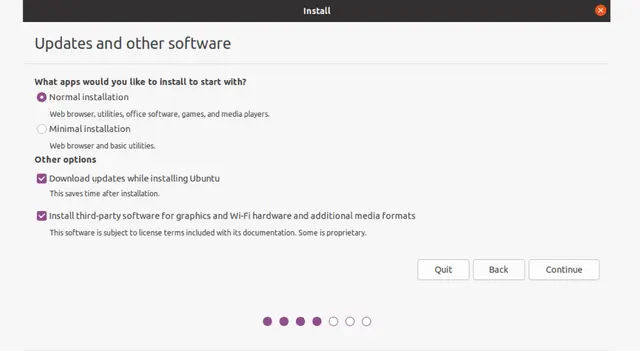

14. Under "Updates and other software" section, check "Normal installation", and the two options under “Other options” and continue.

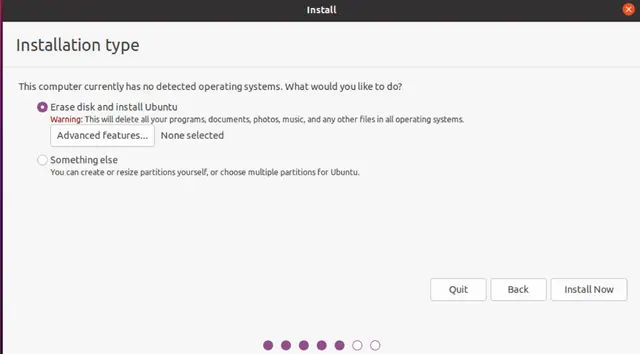

15. In Installation type, check Erase disk and install Ubuntu.

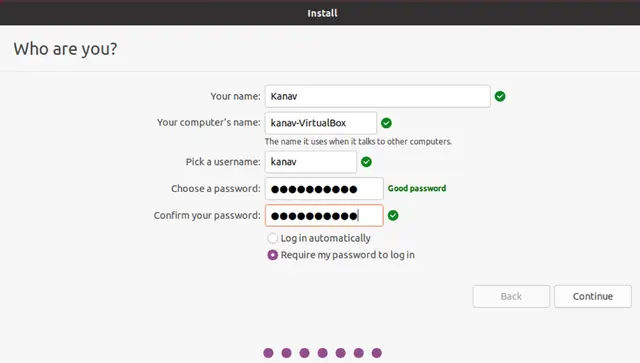

16. Choose your current location and set up your profile. Click Continue.

17. It may take 10-15 minutes to complete the installation

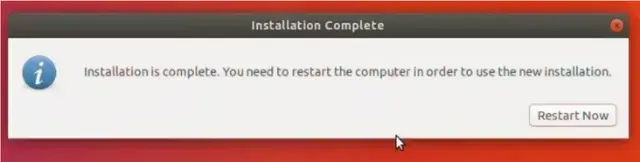

18. Once the installation finishes, restart the virtual system

We are done with pre-request, and can now proceed with using this Ubuntu.

Docker Installation Process on Ubuntu

Method 1: Install Docker on Ubuntu Using Default Repositories

One of the easiest ways is the installation of Docker from the standard Ubuntu 20.04 repositories, but It’s possible that the Ubuntu default repositories have not updated to the latest revision of Docker. It happens because in some cases Docker is not supporting that particular Ubuntu version. Therefore, there can be a scenario where  Ubuntu default repositories have not updated to the latest version.

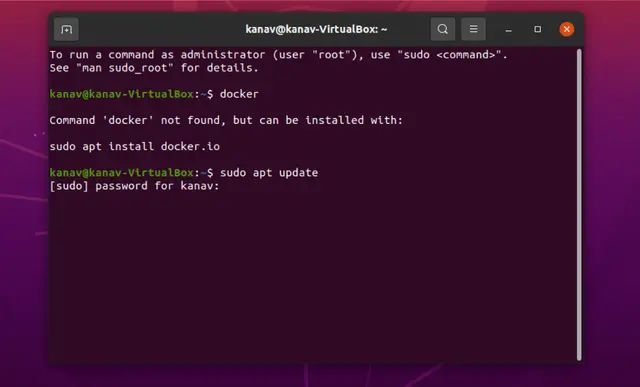

  • Log in to Virtual Box. Run “docker” as command to check if it is previously installed.
  • To install Docker on Ubuntu box, first update the packages. It will ask for a password. Enter it and allow the system to complete the updates.
sudo apt update

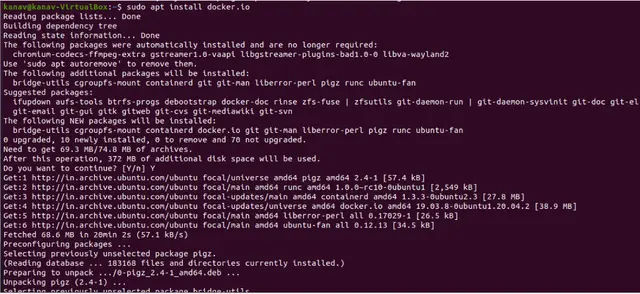

  • To install Docker from Ubuntu default repositories, use the below command:
sudo apt install docker.io
  • To check the installed version, use the below:
docker --version

Since discussed above, it has installed the 19.03.8 version of docker whereas the latest version is 20.04

Method 2: Install Docker from Official Repository

For installing docker on ubuntu 20.04 with the latest version, we’ll proceed with enabling the Docker repository, importing the repository GPG key, and finally installing the package.

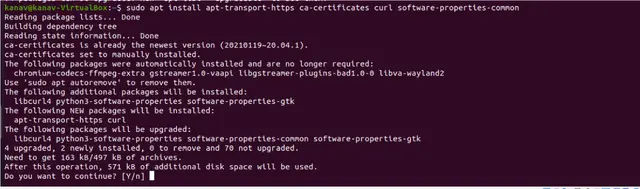

  • To install the docker on Ubuntu box, update your existing list of packages. It will ask for a password. Enter it and allow the system to complete the updates.
sudo apt update
sudo apt install apt-transport-https ca-certificates curl software-properties-common
  • Import the repository’s GPG key using the following curl command:
curl -fsSL https://download.docker.com/linux/ubuntu/gpg | sudo apt-key add -

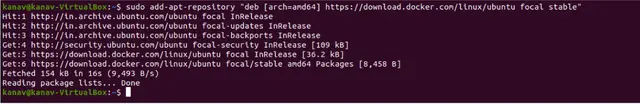

  • Add the Docker APT repository to the system
sudo add-apt-repository "deb [arch=amd64] https://download.docker.com/linux/ubuntu $(lsb_release -cs) stable"
  • Again, update the package database with the Docker packages
sudo apt update

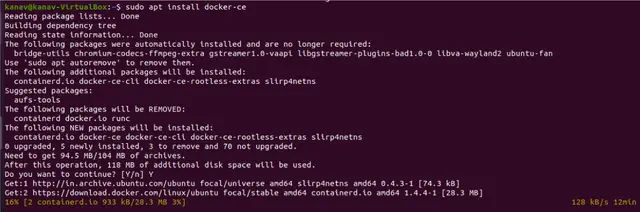

  • Finally, install Docker using below command:
sudo apt install docker-ce
  • To check the installed version use below:
docker --version

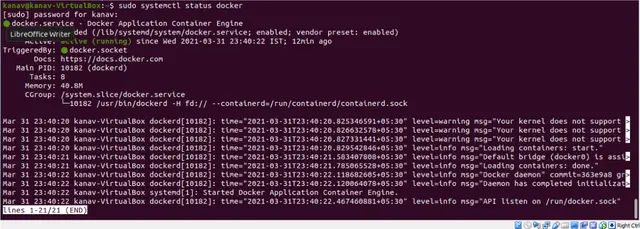

  • To start, enable and check the status of docker, use below command:
sudo systemctl  status docker
sudo systemctl  start  docker
sudo systemctl  enable  docker

To check system wide information regarding docker installation, we use the command “docker info”. Information that is shown includes the kernel version, number of containers and unique images.

The output will contain details as given below, depending upon the daemon running:

Source:

$ docker info
Client:
 Context:    default
 Debug Mode: true
Server:
 Containers: 14
  Running: 3
  Paused: 1
  Stopped: 10
 Images: 52
 Server Version: 1.13.0
 Storage Driver: overlay2
  Backing Filesystem: extfs
  Supports d_type: true
  Native Overlay Diff: false
 Logging Driver: json-file
 Cgroup Driver: cgroupfs
 Plugins:
  Volume: local
  Network: bridge host macvlan null overlay
 Swarm: active
  NodeID: rdjq45w1op418waxlairloqbm
  Is Manager: true
  ClusterID: te8kdyw33n36fqiz74bfjeixd
  Managers: 1
  Nodes: 2
  Orchestration:
   Task History Retention Limit: 5
  Raft:
   Snapshot Interval: 10000
   Number of Old Snapshots to Retain: 0
   Heartbeat Tick: 1
   Election Tick: 3
  Dispatcher:
   Heartbeat Period: 5 seconds
  CA Configuration:
   Expiry Duration: 3 months
  Root Rotation In Progress: false
  Node Address: 172.16.66.128 172.16.66.129
  Manager Addresses:
   172.16.66.128:2477
 Runtimes: runc
 Default Runtime: runc
 Init Binary: docker-init
 containerd version: 8517738ba4b82aff5662c97ca4627e7e4d03b531
 runc version: ac031b5bf1cc92239461125f4c1ffb760522bbf2
 init version: N/A (expected: v0.13.0)
 Security Options:
  apparmor
  seccomp
   Profile: default
 Kernel Version: 4.4.0-31-generic
 Operating System: Ubuntu 16.04.1 LTS
 OSType: linux
 Architecture: x86_64
 CPUs: 2
 Total Memory: 1.937 GiB
 Name: ubuntu
 ID: H52R:7ZR6:EIIA:76JG:ORIY:BVKF:GSFU:HNPG:B5MK:APSC:SZ3Q:N326
 Docker Root Dir: /var/lib/docker
 Debug Mode: true
  File Descriptors: 30
  Goroutines: 123
  System Time: 2016-11-12T17:24:37.955404361-08:00
  EventsListeners: 0
 Http Proxy: http://test:test@proxy.example.com:8080
 Https Proxy: https://test:test@proxy.example.com:8080
 No Proxy: localhost,127.0.0.1,docker-registry.somecorporation.com
 Registry: https://index.docker.io/v1/
 WARNING: No swap limit support
 Labels:
  storage=ssd
  staging=true
 Experimental: false
 Insecure Registries:
  127.0.0.0/8
 Registry Mirrors:
   http://192.168.1.2/
   http://registry-mirror.example.com:5000/
 Live Restore Enabled: false

Note: In case you get below error after running “docker info” command, one way is to add sudo in front and run the command, OR you can refer to the same error-resolving steps mentioned under Running Docker Images section.

Running Docker Images and Verifying the process:

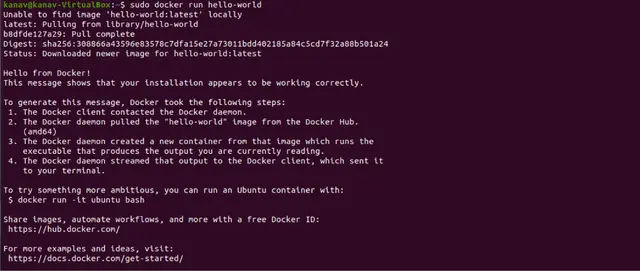

To check whether you can access and download the images from Docker Hub, run the following command:

sudo docker run hello-world

In case of errors received after running the docker run command, you can correct it using the following steps, otherwise proceed with the next step of checking the image.

ERROR: docker: Got permission denied while trying to connect to the Docker daemon socket at unix:///var/run/docker.sock: Post http://%2Fvar%2Frun%2Fdocker.sock/v1.35/containers/create: dial unix /var/run/docker.sock: connect: permission denied. See 'docker run --help'.

  • Create the docker group if it does not exist
sudo groupadd docker
  • Add your user to the docker group.
  sudo usermod -aG docker $USER

Eg:- sudo usermod -aG docker kanav

  • Run the following command or Logout and login again and run ( if that doesn't work you may need to reboot your machine first)
 newgrp docker
  • Check if docker can be run without root
docker run hello-world

If the problem still continues, try to reboot it and run the command.

  • To check the image, use this command:
sudo docker images

Uninstall Procedure:

Below are the common commands used to remove images and containers:

sudo  apt-get  purge docker-ce docker-ce-cli containerd.io

To completely uninstall Docker, use below:

  • To identify what are the installed packages, this is the command:
dpkg -l | grep -i docker
sudo apt-get purge -y docker-engine docker docker.io docker-ce docker-ce-cli
sudo apt-get autoremove -y --purge docker-engine docker docker.io docker-ce
  • To remove images, containers, volumes, or user created configuration files, these commands can be used:
  • sudo rm -rf /var/lib/docker /etc/docker
  • sudo rm /etc/apparmor.d/docker
  • sudo groupdel docker
  • sudo rm -rf /var/run/docker.sock

Conclusion:

If you found this Install Docker on Ubuntu blog relevant and useful, do check out the Docker-Training workshop from KnowledgeHut, where you can get equipped with all the basic and advanced concepts of Docker!

Kanav Preet

8 articles published

Kanav is working as SRE in leading fintech firm having experience in CICD Pipeline, Cloud, Automation, Build Release and Deployment. She is passionate about leveraging technology to build innovative ...

Get Free Consultation

+91

By submitting, I accept the T&C and
Privacy Policy

Preparing to hone DevOps Interview Questions?
